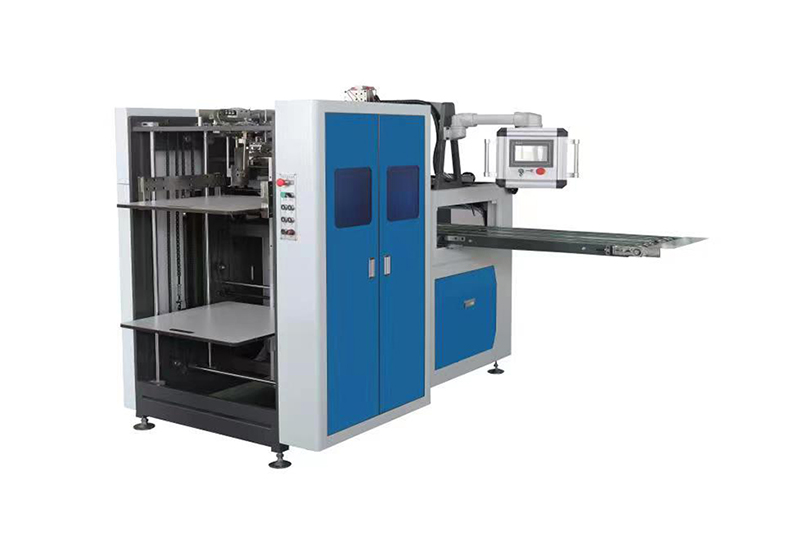

JX-TJ500 Corner Pasting Machine

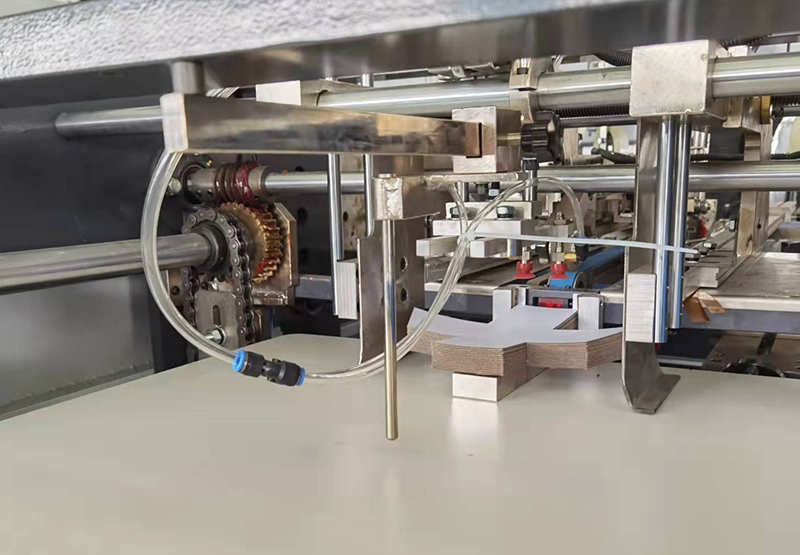

Upper-suction feeding for cardboard to prevent it from Double-sheeting feeding;
Non-stop cardboard quick stacking and conversion device;
Man-machine interface with PLC system controlling and servo pasting system;
The replacement work of the various sizes of the cardboard is easy and fast as well as the mold-replacing work;

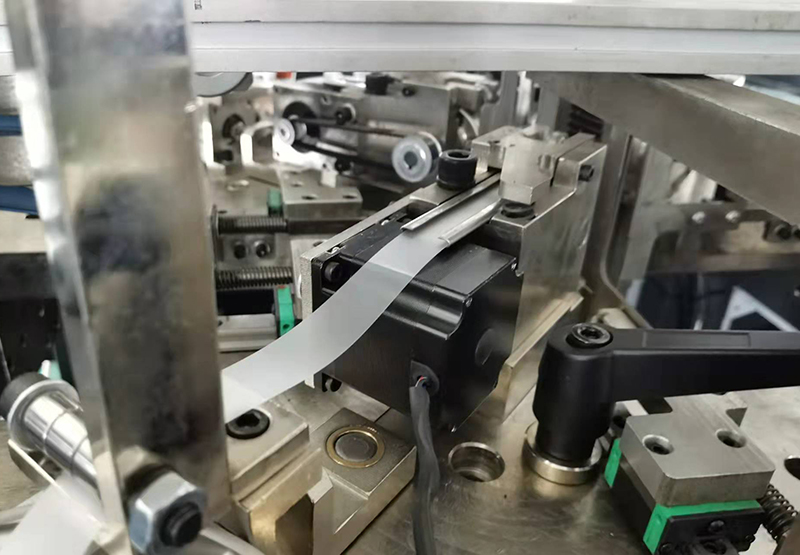

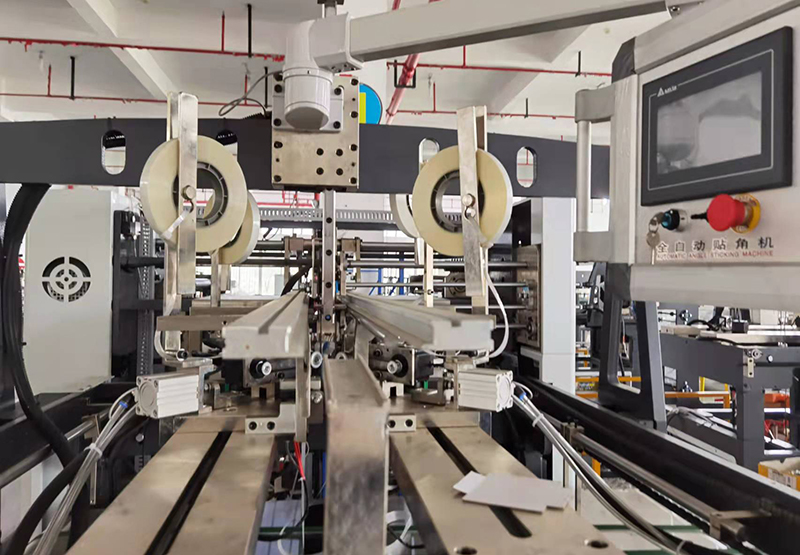

Automatic tape-sending,automatic tape cutting and pasting enable four-corner pasted at one time;
Automatic alarming system for running-out alarm for both cardboard and tape.

Inquiry

Product details

Machine Performance

Upper-suction feeding for cardboard to prevent it from Double-sheeting feeding;
Non-stop cardboard quick stacking and conversion device;
Man-machine interface with PLC system controlling and servo pasting system;
The replacement work of the various sizes of the cardboard is easy and fast as well as the mold-replacing work;
Automatic tape-sending,automatic tape cutting and pasting enable four-corner pasted at one time;
Automatic alarming system for running-out alarm for both cardboard and tape.

Main Technical Parameters

Model	JX-TJ500
Max.size of box	500×400×130mm
Min.size of box	80×80×15mm
Work speed	20-40pcs/min.
Machine Dimension(L×W×H)	2000×2100×2200mm
Net weight	1500kgs
Air supply	≧0.6MPA
Power	3kw
