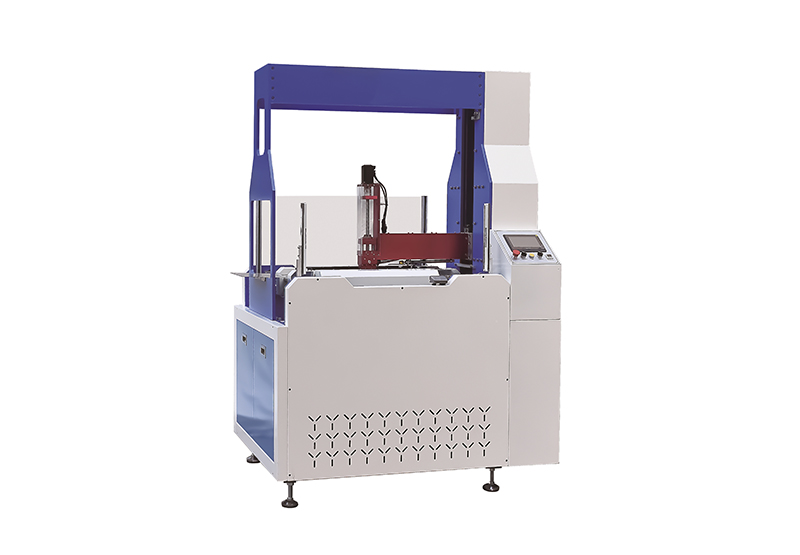

JX-SH550A Rigid Box Machine

The machine driven by servo motor,pneumatic system and PLC programming control;
It is automatic mold-size adjusting model which is easier and faster for mold replacing and machine debugging;
The machine equipped with the brand components such as Schneider,Panasonic,DELTA,AirTac and HIWIN;
Equipped with Panasonic Safety-device to ensure safety for machine users;
A cost-effective solution for rigid box packaging and it is an ideal machine for multiple-size box orders.

Inquiry

Product details

Machine Performance

The machine driven by servo motor,pneumatic system and PLC programming control;
It is automatic mold-size adjusting model which is easier and faster for mold replacing and machine debugging;
The machine equipped with the brand components such as Schneider,Panasonic,DELTA,AirTac and HIWIN;
Equipped with Panasonic Safety-device to ensure safety for machine users;
A cost-effective solution for rigid box packaging and it is an ideal machine for multiple-size box orders.

Main Technical Parameters

Model	JX-SH550A
Max.size of box	500×400×120mm
Min.size of box	90×70×15mm
Work speed	5-15pcs/min.
Power	2.5kw
Air supply	≧0.6MPA
Voltage	AC220V,50Hz
Machine Dimension(L×W×H)	1550×1400×2200mm
Net weight	1150kgs
