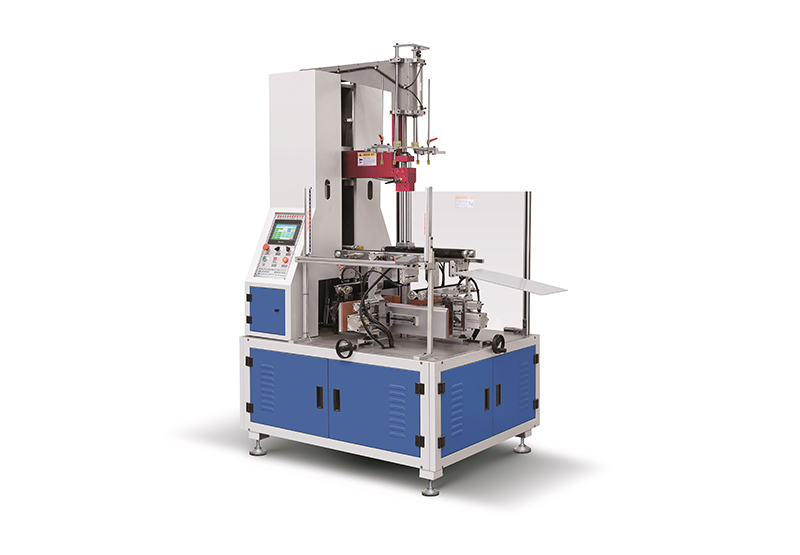

JX-540 Rigid Box Machine

The machine is classical model which widely used worldwide over 10years,applying to various sizes of rigid boxes with durable machine life;
It is PLC system,servo system and pneumatic system controlled;
The machine equipped with the brand components such as Schneider,CHINT,Panasonic,DELTA,AirTac,SWC and HIWIN;
The machine equipped with Panasonic Safety-device to ensure safety for machine users.

Inquiry

Product details

Machine Performance

The machine is classical model which widely used worldwide over 10years,applying to various sizes of rigid boxes with durable machine life;
It is PLC system,servo system and pneumatic system controlled;
The machine equipped with the brand components such as Schneider,CHINT,Panasonic,DELTA,AirTac,SWC and HIWIN;
The machine equipped with Panasonic Safety-device to ensure safety for machine users.

Main Technical Parameters

MODEL	JX-430	JX-540	JX-650
Max.Size of Box (L×W×H)	400×300×100mm	500×400×150mm	600×500×180mm
Min.Size of Box (L×W×H)	40×40×10mm	80×60×10mm	100×80×15mm
Max.Turn-in Depth	80mm	90mm	100mm
Box Wrapping Speed	10-20pcs/min	10-20pcs/min	10-20pcs/min
Power	3KW	3KW	4KW
Air supply	≧0.6Mpa	≧0.6Mpa	≧0.6Mpa
Voltage	AC220V,50Hz	AC220V,50Hz	AC220V,50Hz
Overall Dimension(L×W×H)	1100×800×2100mm	1300×1000×2300mm	1300×1500×2300mm
Net Weight	600kgs	800kgs	950kgs
