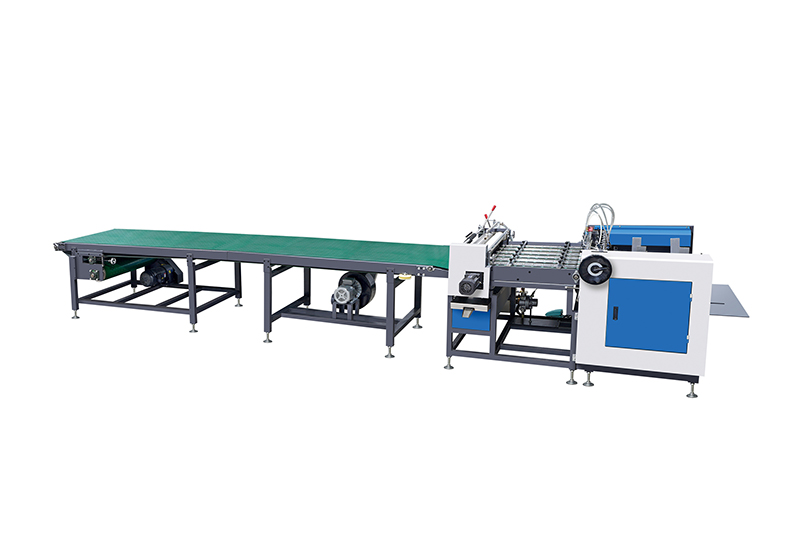

Machine Description

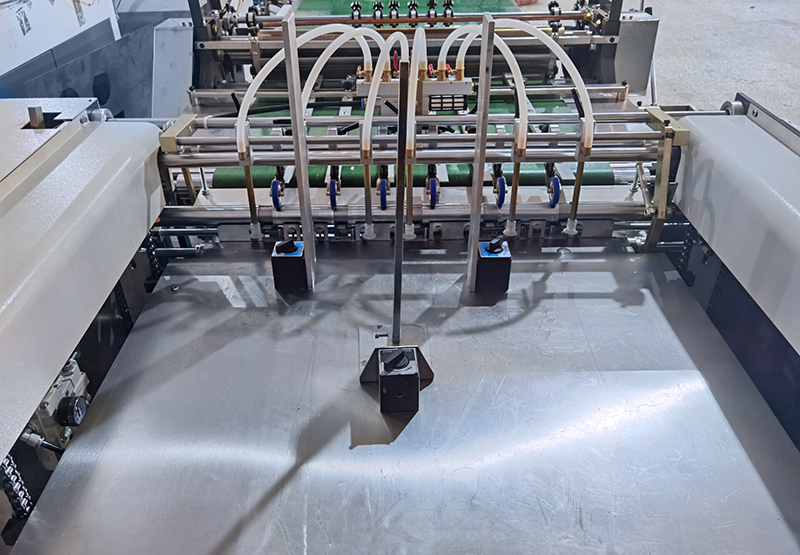

- Automatic sheet-feeding by front-edge suction for various sheet-sizes;
- With ball bearing design of feed table,the sheets are conveyed strait-through by pressure system;

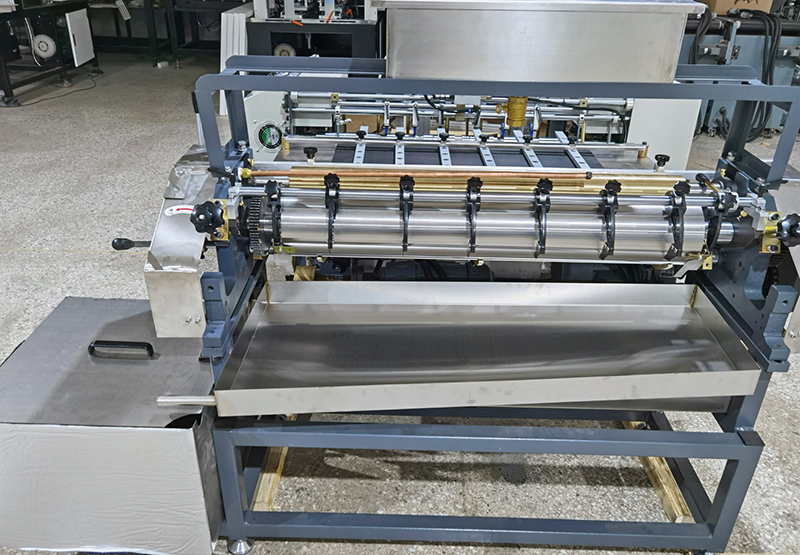

- Adjustable rollers apply smooth glue coating on the sheet surface;
- The circulating glue system with temperature controller assures the adequate glue consistency;

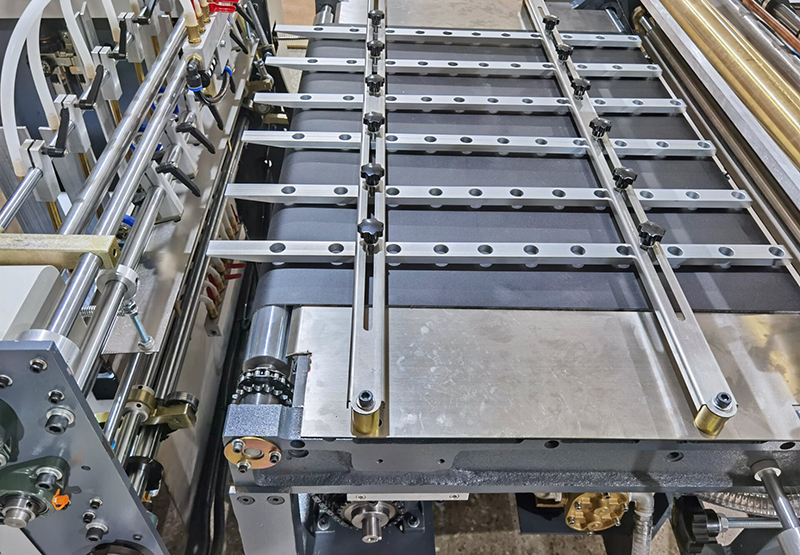

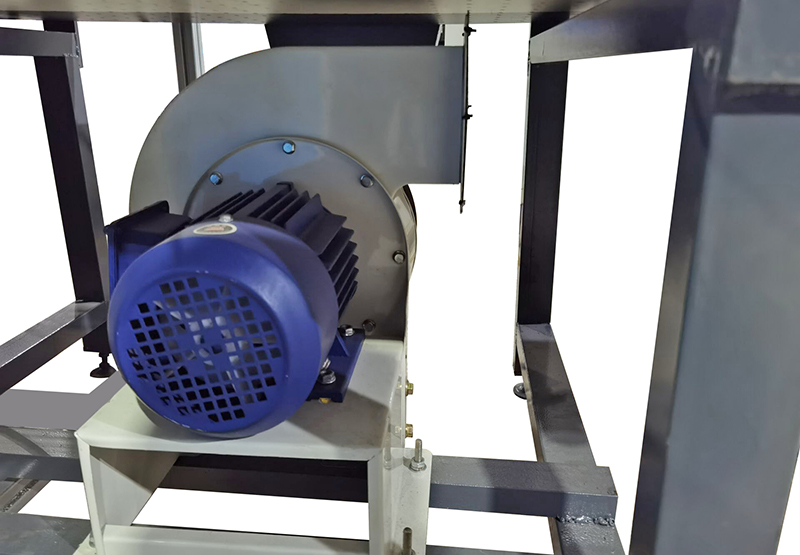

- Conveyor belt equipped with air-suction system to forward sheet flat and stably.
Main Technical Parameters
|
MODEL |
JX-GS650 |
JX-GS850 |
JX-GS1050 |
|
Feeding Width of paper |
80mm-600mm |
80mm-800mm |
100mm- 1000mm |
|
Feeding length of paper |
150mm- 1000mm |
150mm- 1000mm |
160mm- 1000mm |
|
Thickness of paper |
100gsm-200gsm |
100gsm-200gsm |
100gsm-200gsm |
|
Gluing Speed |
10-40pcs/min |
10-40pcs/min |
10-40pcs/min |
|
Layout Dimension (L×W×H) |
(8300x 1700x1300)mm |
(8500x2000x1300)mm |
(8500x2200x1300)mm |
|
Conveyor size(L×W) |
6000mmx600mm |
6000mmx800mm |
6000mmx1000mm |
|
Net Weight |
950kg |
1050kgs |
1450kgs |
|
Power |
9kw |
11KW |
13kw |
|
Voltage Supply |
AC380V,50HZ |
AC380V,50HZ |
AC380V,50HZ |
