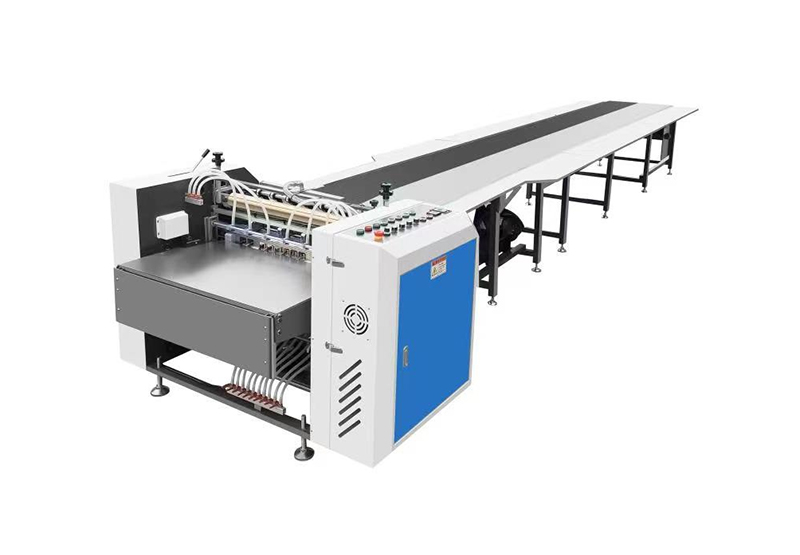

JX-GD Automatic Gluing Machine

Inquiry

Product details

Main Technical Parameters

MODEL	JX-GD850	JX-GD1050
Feeding Width of paper	60mm-800mm	70mm- 1000mm
Feeding length of paper	90mm- 1000mm	100mm- 1000mm
Thickness of paper	100gsm-200gsm	100gsm-200gsm
Gluing Speed	10-40pcs/min	10-40pcs/min
Layout Dimension (L×W×H)	(7500x1900x1300)mm	(7500x2000x1300)mm
Conveyor size(L×W)	6000mmx800mm	6000mmx1000mm
Net Weight	1200kgs	1450kgs
Power	8KW	11kw
Voltage Supply	AC380V,50HZ	AC380V,50HZ

If you have any enquiry about quotation or cooperation,please feel free to email us at leoboxmachine@163.com or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
