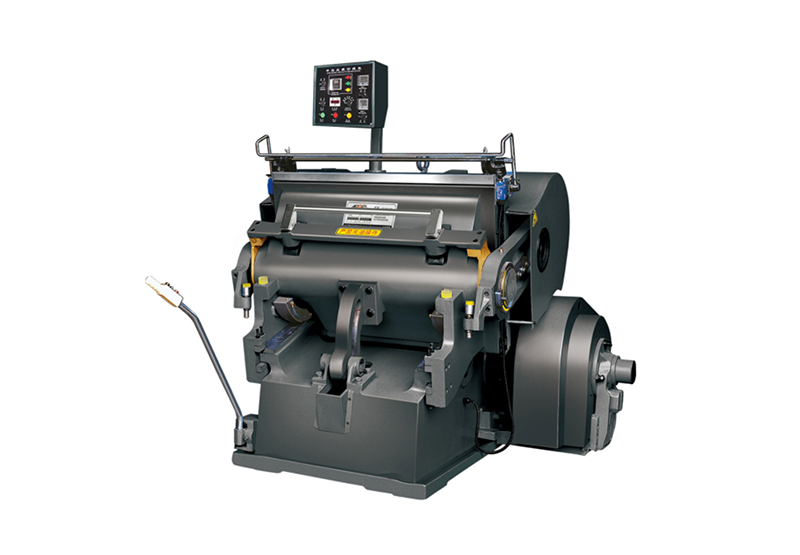

ML Die Cutting Creasing Machine

With compact structure, equipped with single-disk electro-magnetic clutch, sensitive, convenient and reliable.
The machine equipped with 3 safety-devices in the 3 positions and 3 cutting ways are single sheet cutting, continuous cutting and delay cutting.
Main body is made of high quality integrated cast iron with high strength and rigidity to achieve Durable machine-life.
Suitable for cutting paper board and corrugated paper.
Inquiry

Product details

Features：

  • With compact structure, equipped with single-disk electro-magnetic clutch, sensitive, convenient and reliable.
  • The machine equipped with 3 safety-devices in the 3 positions and 3 cutting ways are single sheet cutting, continuous cutting and delay cutting.
  • Main body is made of high quality integrated cast iron with high strength and rigidity to achieve Durable machine-life.
  • Suitable for cutting paper board and corrugated paper.

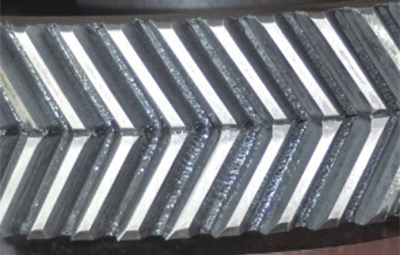

Hi accuracy herringbone gear

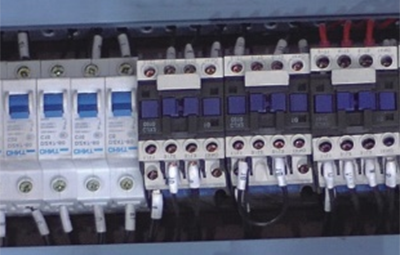

Brand electrical elements

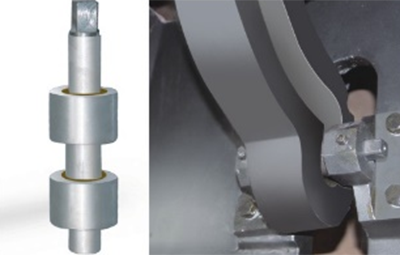

Curve ring and shaft with copper bushing


Operative die chase

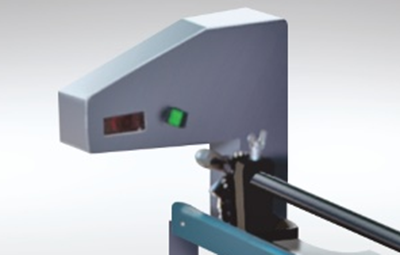

Infrared safety

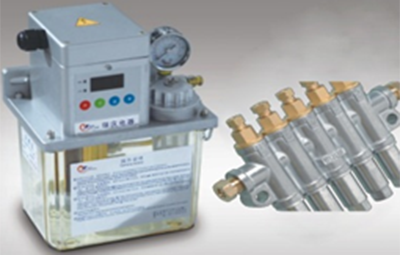

Automatic oil pump

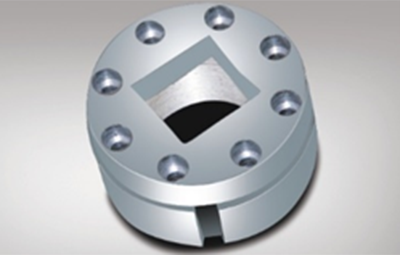

Dedicated retaining device




Main Technical Parameters

Model

ML-930

ML-1100

ML-1200

Inner Chase Size

930×670mm

1100×800mm

1200×820mm

Machine Dimension

(L×W×H)

1650×1850×1650mm

1950×2100×1750mm

2000×2100×1750mm

Speed

23±2/Min

20±2/Min

20±2/Min

Rule length

＜25m

＜35m

＜37m

Weight

3000kg

4500Kg

4800Kg

Motor power

4KW-4H

4KW-6H

4KW-6H
