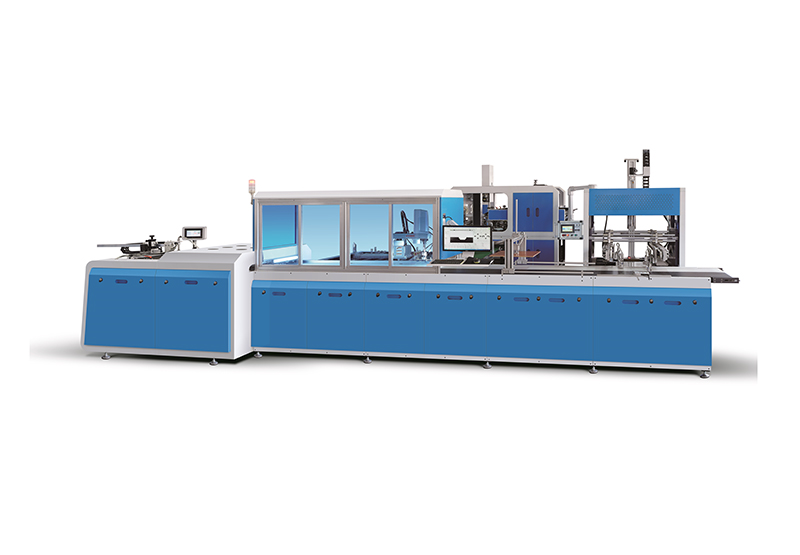

JX-F450 Automatic Rigid Box Maker

Machine Performance

1.CAM driven by Servo motor for paper-feeding system to achieve more stable and more accurate paper feeding;

2.Automatic gluing system controlled by servo system,automatic heating,circulation and mixing for hot-melting glue;

3.Automatic delivering system of conveyor driven by servo motor;Photoelectric Sensor on the conveyor and vacuum fan under the conveyor belt can prevent glued paper or positioned paper from deviating;

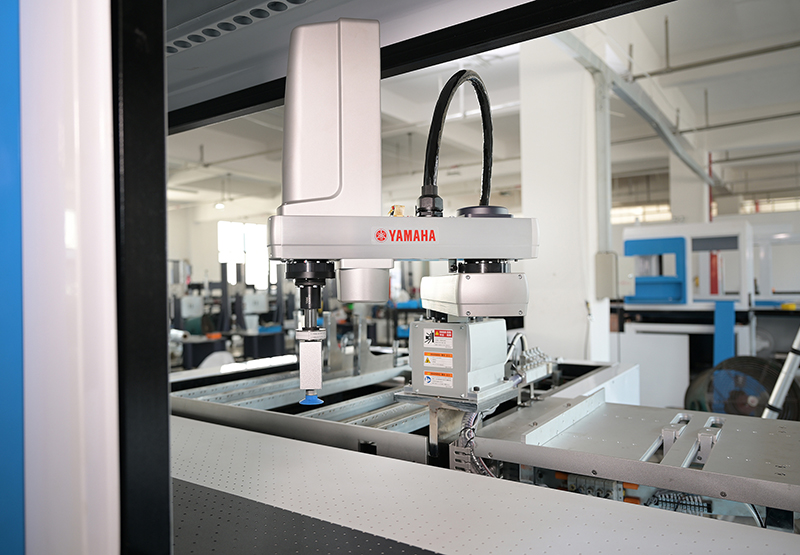

4.CCD Visual positioning system cooperates with YAMAHA SCARA to spot box on paper automatically and Remote online-support for the visual system,one piece 20million pixel camera thus no need to adjust the camera position for various sizes of positioning;

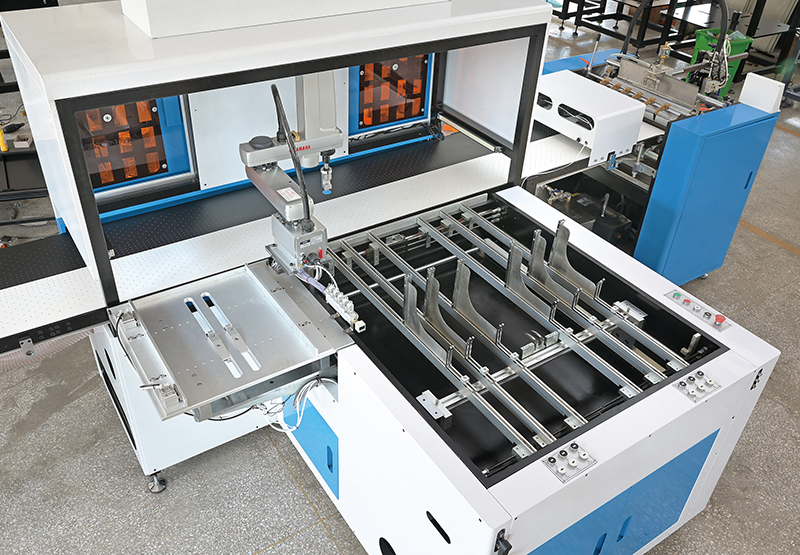

5.Dual-station station applicable to both box positioning and case positioning;

6.Germany Basler camera and Japan Kowa Lens ensure high performance;

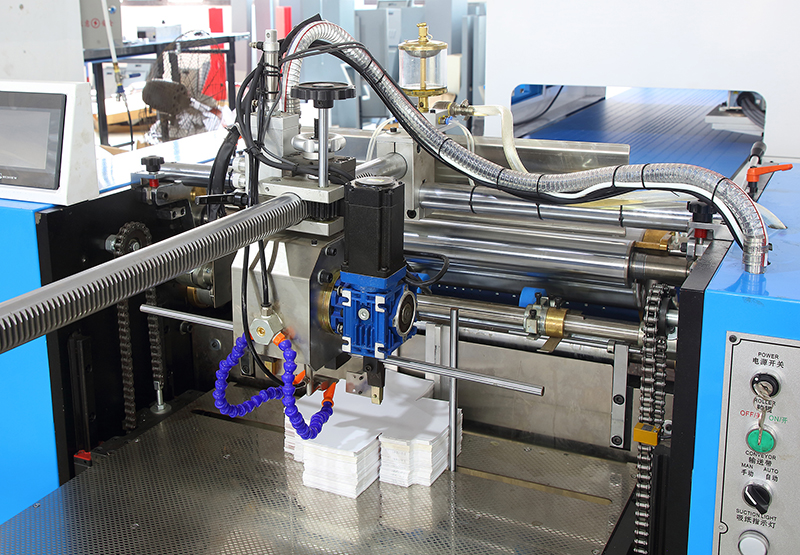

7.Automatic 4-Corner Pasting Section for cardboard box,pneumatic and servo driving;

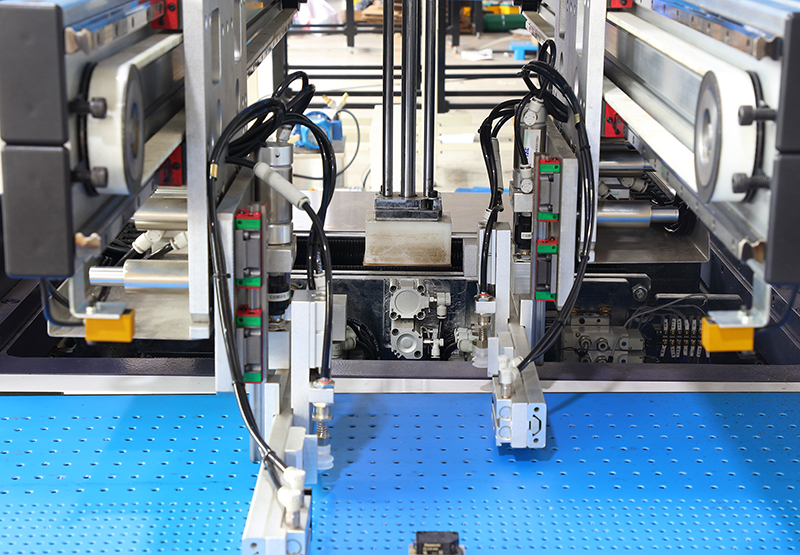

8.Servo and pneumatic driving system and motion control for box wrapping system to achieve intelligent operating and premium look of rigid box;

9. A cost-effective solution for the fully automatic rigid box and case making&case lining line.

Main Technical Parameters

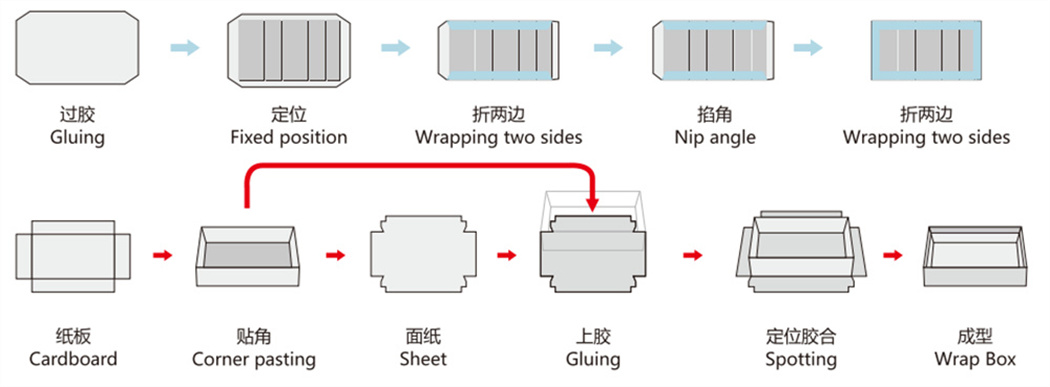

Product Process
