Machine Performance

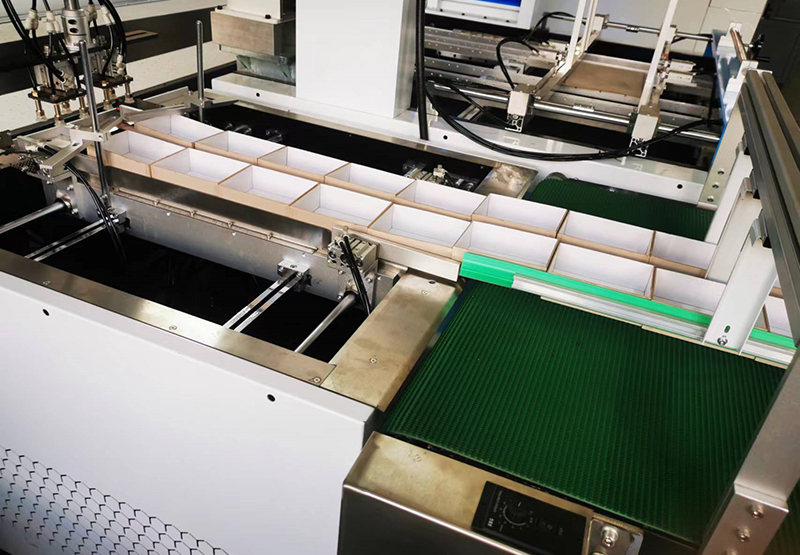

- The Dual-box positioning system that enables the Robotic Arm positions 2pcs boxes(one pc up-lid box and one pc downside box) one time,improving production efficiency;
- The positioning system also adapts the certain irregular products such as hexagonal box,octagonal box,circular box and so on.
Main Technical Parameters
|
MODEL |

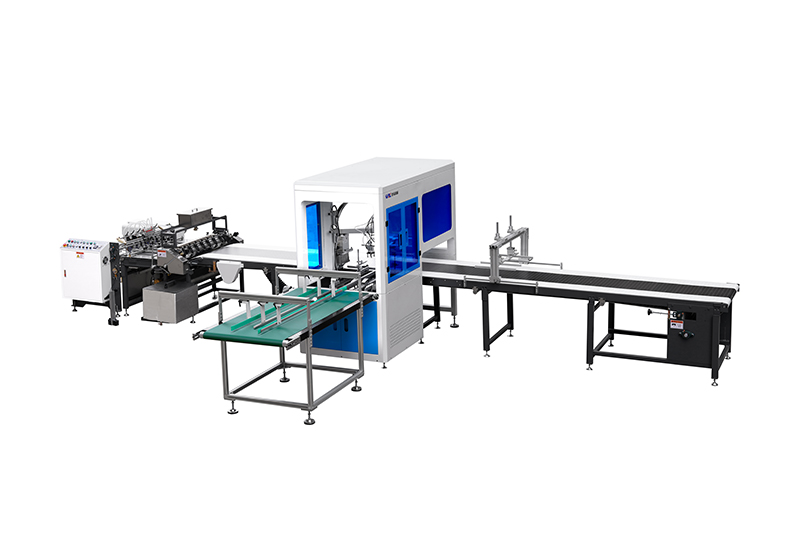

JX-DW650 Dual-Box Visual Positioning Gluing Line |
|
|
Max.size of cover paper(W×L) |
800mm×1000mm |
|
|
Min.size of cover paper(W×L) |
60mm×165mm |
|
|
Dual-box positioning |
Max.inner box(Dual-box in 2 sizes/time) |
420mm×200mm×120mm(L×W×H) 415mm×195mm×120mm(L×W×H) |
|
Min.inner box(Dual-box same size) |
80mm×50mm×12mm(L×W×H) |
|
|
Single-box positioning |
Max.inner box |
500mm×400mm×120mm(L×W×H) |
|
Min.inner box |
50mm×50mm×12mm(L×W×H) |
|
|
Thickness of paper board |
1mm-3mm |
|
|
Robotic Arm |
ESTUN 700radius/600rasius, max.load 10kgs |
|
|
Positioning accuracy |
0.2mm-0.3mm |
|
|
SCARA speed |
1-14pcs/min. |
|
|
Air supply |
0.6-0.8MPA |
|
|
Voltage |
AC 220V /AC380V |
|
|
Overall Dimension(L×W×H) |
8500mm×2500mm×2000mm |
|
|
Net weight |
Around 1900kgs |
|
