Machine Description

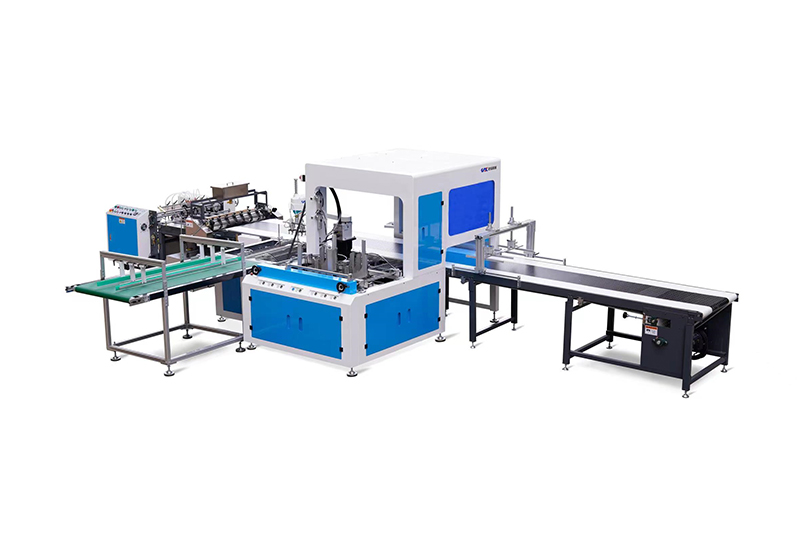

The machine consists of automatic paper feeder, gluing unit,automatic cardboard feeder,Dual-box and Case Visual-position system with Robotic Arm. It adapts to both Dual-box positioning and case positioning and Inner case paper positioning.The advanced visual position system and stable Robotic-arm to achieve intelligent operating and durable machine life at the meantime it is a cost-effective solution for box and case packaging.
Machine Performance

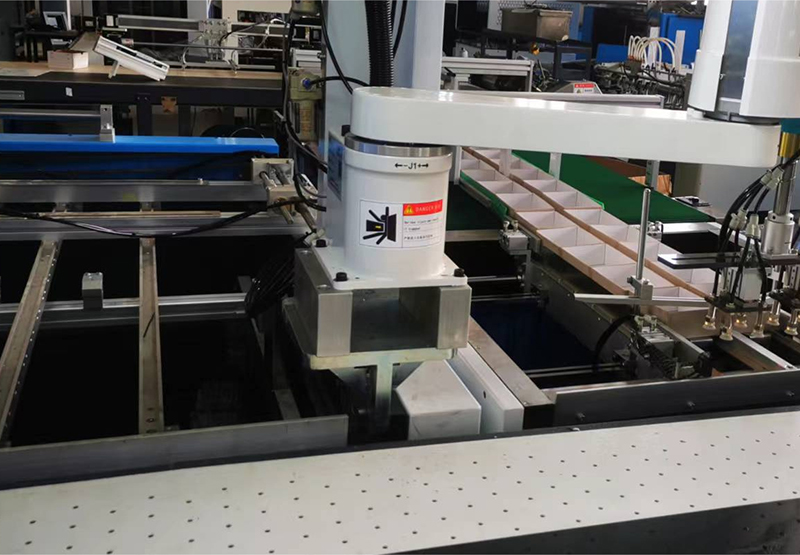

1.The positioning system consists of Box positioning station and Case positioning station,one-button click to switch positioning mode,the Box positioning station applied with Dual-box positioning system that enables the Robotic Arm positions 2pcs boxes(one pc up-lid box and one pc downside box) one time,improving production efficiency,intelligent operating and simple maintenance;

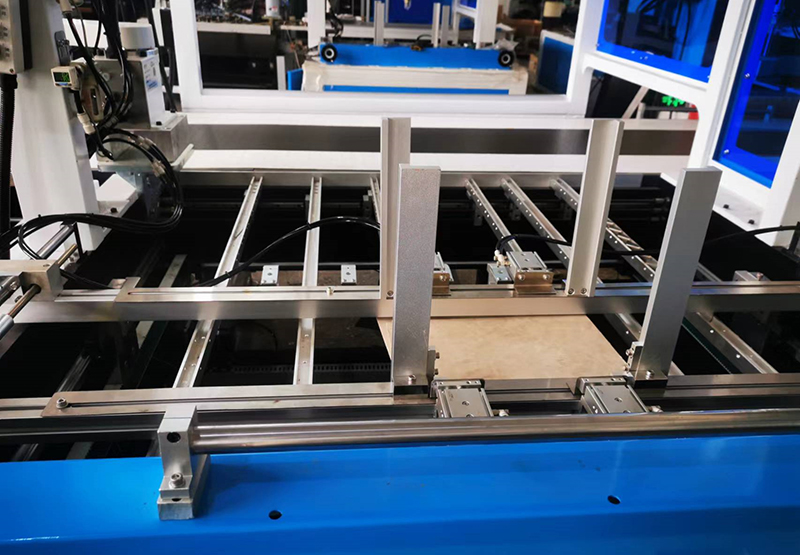

2.The cardboard feeder equipped with Anti-scratch device to prevent cardboard/case from scratching during case lining and iron-disc inserting case feeding/Magnet inserting case feeding;
3.Automatic trouble display and alarm,easy for machine trouble remedies.
Main Technical Parameters
|
MODEL |
JX-DW1050 Dual-Box&Case Visual Positioning Gluing Line |
|
|
Max.size of cover paper(W×L) |
1000mm×1000mm |
|
|
Min.size of cover paper(W×L) |
80mm×165mm |
|
|
Dual-box positioning |
Max.inner box(Dual-box in 2 sizes/time) |
420mm×200mm×120mm(L×W×H) 415mm×195mm×120mm(L×W×H) |
|
Min.inner box(Dual-box same size) |
80mm×50mm×12mm(L×W×H) |
|
|
Single-box positioning |
Max.inner box |
500mm×400mm×120mm(L×W×H) |
|
Min.inner box |
50mm×50mm×12mm(L×W×H) |
|
|
Case positioning station |
Max.size of paper board |
460mm×960mm(W×L) |
|
Min.size of paper board |
20mm×30mm(W×L) |
|
|
Thickness of paper board |
1mm-4mm |
|
|
Robotic Arm |
ESTUN 700radius/600radius, max.load 10kgs |
|
|
Positioning accuracy |
0.2mm-0.3mm |
|
|
SCARA speed |
1-15pcs/min. |
|
|
Air supply |
0.6-0.8MPA |
|
|
Voltage |
AC 220V /AC380V |
|
|
Layout Dimension(L×W×H) |
8500mm×2500mm×2000mm |
|
|
Net weight |
Around 2700kgs |
|
