Machine Description

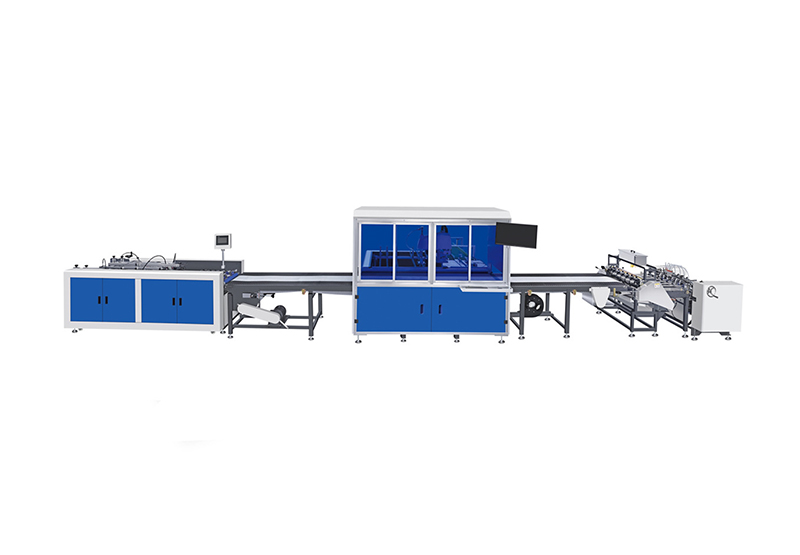

The machine consists of automatic paper feeder, gluing unit,automatic cardboard feeder and Visual position line with Robotic Arm. It adapts to both case making and laminating inner case-paper.The advanced visual position system and stable Robotic-arm to achieve intelligent operating.
Automatic trouble display and alarm,easy for machine trouble remedies.
Main Technical Parameters
|
MODEL |
JX-DW850 Case Visual Positioning Gluing Line |
|
Max.size of paper |
1000×800mm |
|
Min.size of paper |
160×80mm |
|
Max.size of paper board |
960mm×460mm |
|
Min.size of paper board |
30mm×20mm |
|
Max.qty.of paper board/feeding |
5pcs |
|
Thickness of paper board |
1mm-3.5mm |
|
Robotic Arm |
ESTUN 600radius /YAMAHA(optional) |
|
Positioning accuracy |
0.2mm-0.3mm |
|
Working speed |
1-20pcs/min. |
|
Air supply |
0.6-0.8MPA |
|
Voltage |
AC 220V /AC380V |
|
Overall Dimension(L×W×H) |
11500mm×2700mm×2600mm |
|
Net weight |
2700kgs |
