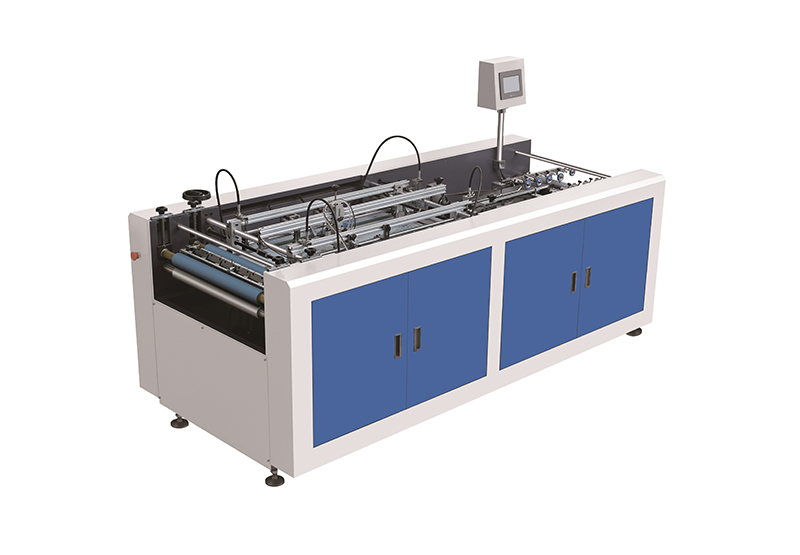

JX-C900 Case Making Machine

Inquiry

Product details

Main Technical Parameters

MODEL	JX-C900	JX-C1200	JX-C1500
Finished Case Size(L×W)	Max.900mm×450mm Min.160mm×100mm	Max.1200mm×600mm Min.180mm×100mm	Max.1500mm×700mm Min. 180mm×100mm
Cardboard Thickness	1mm-3mm	1mm-3mm	1mm-3mm
Cover Paper Thickness	100-200gsm	100-200gsm	100-200gsm
Speed	1-15pcs/min	1-12pcs/min	1-10pcs/min
Voltage	220V,single phase,50Hz	220V,single phase,50Hz	220V,single phase,50Hz
Power	2.5kw	2.9kw	3kw
Air Supply	⩾0.6Mpa	⩾0.6Mpa	⩾0.6Mpa
Dimension( L×W×H)	2250mm×1150mm×1380mm	2760mm×1300mm×1420mm	3260mm×1400mm×1420mm
Net Weight	1000kg	1200kg	1400kg
