Main Technical Parameters
|
MODEL |

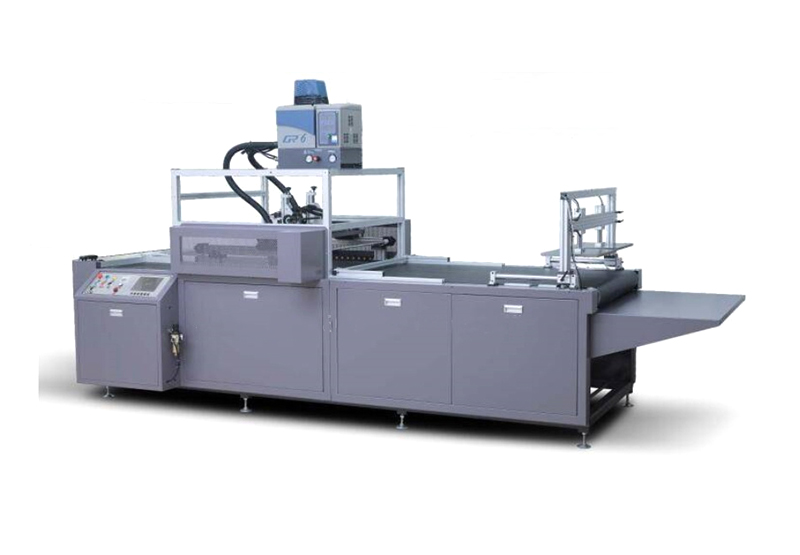

1000B BOX ASSEMBLY MACHINE |
|
Max.size of paper-board |
950mm×550mm |
|
Min.size of paper-board |
90mm×50mm |
|
Max.size of Inner Box(L×W×H) |
600mm×550mm×150mm |
|
Min.size of Inner Box(L×W×H) |
50mm×50mm×10mm |
|
Working Speed |
1-15pcs/min. |
|
Power |
7KW |
|
Air supply |
0.75Mpa |
|
Voltage |
AC380V,50Hz,3-PH,4-LINE |
|
Machine Dimension(L×W×H) |
3700mm×1600mm×19000mm |
|
Net Weight |
850kgs |
